Twin Screw Bamboo Powder/Corn starch-based Biodegradable Sheet Extrusion Lines
Bamboo powder/ Cornstarch-based biodegradable sheet extrusion lines are used to produce eco-friendly sheets for making biodegradable products. These biodegradable sheet extrusion machines use cornstarch as a primary material, helping reduce plastic waste.
1, Lead Time:1-2 months after deposit confirmed
2, Price Term: FOB,EXW,CFN,CIF,etc.
3,Payments: T/T,Visa,Paypal,etc.
What is Cornstarch-Based Biodegradable Sheet Extrusion Lines?
1, TZ-machinery twin-screw cornstarch based biodegradable sheet extrusion machine is suitable forPLA+PBAT+cornstarch/bamboo powder/bagasse/straw-cornstarch/bamboo powder/bagasse/straw+PP . Those biodegradable sheet extrusion lines are specialized machines designed to convert cornstarch into biodegradable sheets. These lines use a combination of cornstarch and other eco-friendly additives to produce sheets that can be used in various applications, reducing reliance on harmful plastic.
2, The screws are building block structure, a multi-combination, and convenient to maintain equiment. The extruder is equipped with two vacuum exhaust to ensure that the water and gas are exhausted fully. The symmetrical thin-walled roller simplifies improve the cooling efficiency, production capacity and sheet quality.
3, the extruder is equipped with metering pump, can control the output stably. Adopt PLC to control the pressure and speed, realize the automation control of parameter setting, data operation and feedback, alarm, etc.
Equipment Parameters:
- Mixing-drying Machine
- Ration Feeder
- Masterbatch Mixer
- Extruder Screw
- Hydraulic Filter Changer
- Metering Pump
- Extrusion Die
- Three-roll Calender
- Waste Edge Cutting Device
- On-line Crusher of Waste Edge Material
- Thickness Gauge
- Corona Device
- Oil Coating Device
- Oven
- Traction Machine
- Storage Rack
- Automatic Winder
- Calender Temperature Control System
Technical Parameters:
| Model | Adaptive Material | Screw Structure | Screw Size (mm) | Sheet Thickness (mm) | Sheet Width (mm) | Extrusion Capacity (kg/h) |
| TANZ-75S | PLA+PBAT+ Cornstarch/Bamboo Powder; Cornstarch/Bamboo Powder+PP | Parallel Twin-screw; blocking structure | φ75 | 0.15-1.6 | ≤800 | 400~550 |
| TANZ-75S/65D | φ75+65 | 0.15-1.6 | ≤800 | 400~650 | ||
| TANZ-85S | φ85 | 0.15-1.6 | ≤800 | 600~900 | ||
| TANZ-85S/65D | φ85+65 | 0.15-1.6 | ≤800 | 600~1000 | ||
| TANZ-95S | φ95 | 0.15-1.6 | ≤800 | 1000~1300 | ||
| TANZ-95S/65D | φ95+65 | 0.15-1.6 | ≤800 | 1000~1400 |
Cornstarch Based Biodegradable Sheet Extrusion Line Details:
Extruder
Twin screws with exhaust design, L/D=52, can exhaust the water and gas when extruding, do not need crystallizing-drying machines, higher production capacity
Extrusion Die (Jctimes)
The mold is made of alloy steel, and the flow channel is chrome-plated and polished, allowing the mold width to be adjusted without stopping the machine.
Three-roller calender
The three-roller light machine is a horizontal or vertical or 45 degree inclined design.The thickness of the sheet is automated adjustment system,The machanical roller has anti-collision protection function.The use of electronic hand wheel operations to implement the sheet specifications,which are transformed quickly and relaxed,and no tedious operations are required.The accuracy of slices is as high as 0.005mm.

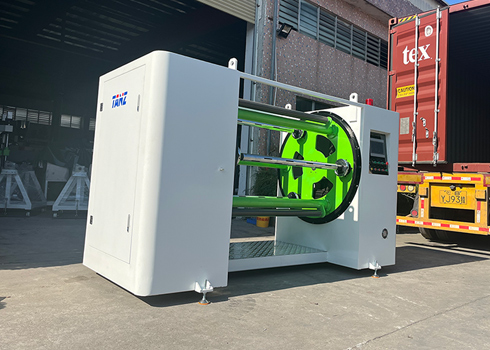

Three Stations Winder
The three station winding machine is equipped with automatic meter meter , You can also customize a larger volume weight , and the larger diameter can be collected by 1.15 meters . It also specially developed an automatic winding machine that can collect 2 rolls at the same time to achieve high production capacity.
